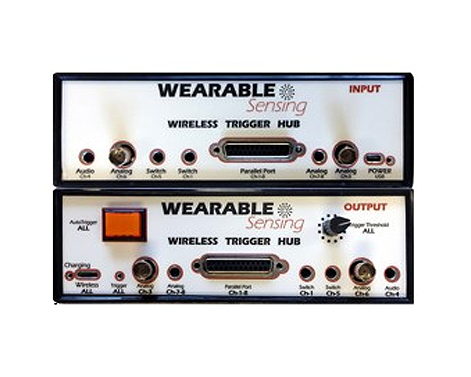

Dry EEG Wireless TriggerHub

    • The wireless trigger hub enables interfacing between Wearable Sensing¡¯s Dry Sensor Interface (DSI) EEG headsets and other systems, facilitating device synchronization and third-party system integration. The hub allows you to acquire triggers from and transmit triggers to many sources. consolidating up to 8 trigger sources into a single multi-channel output that inputs directly into DSI systems. The use of standardized input connectors and cables allows the user to connect and synchronize a wide range of third-party devices with the hub and with DSI systems. Triggers from the input parallel port are distributed across the connections on the output panel. The trigger output voltage is 0 – 5 V, which is sufficient to drive the trigger inputs of standard devices.

Inputs/Outputs

  • ¤ý1 parallel port (DB-25 connector, 8 channels)
  • ¤ý4 analog inputs
  • ¤ý2 via BNC connectors
  • ¤ý2 via 3.5 mm stereo connector
  • ¤ý1 line-level audio input (3.5 mm stereo connector)
  • ¤ý2 switch inputs (3.5 mm stereo connectors)
  • ¤ý1 auto-trigger function (output on all ports)

Hub Outputs to DSI Systems

  • ¤ý8-bit wireless trigger
  • ¤ý8-bit wired (DB-25) trigger

Uses Standard Input Connectors

  • ¤ýDigital (parallel port (DB-25)
  • ¤ýAnalog (BNC connectors; 3.5 mm jack)
  • ¤ýLine-level audio (3.5 mm jack)
  • ¤ýSwitch inputs (3.5 mm jack)

Wireless

  • ¤ýTransmission range: 10 m
  • ¤ýRepeater eliminates transmission shadow effect
  • ¤ýIncreases fidelity of transmission to 99.999%

Uses Standard Input Connectors

  • ¤ýDigital (parallel port (DB-25)
  • ¤ýAnalog (BNC connectors; 3.5 mm jack)
  • ¤ýLine-level audio (3.5 mm jack)
  • ¤ýSwitch inputs (3.5 mm jack)

Analog/Parallel Port

  • ¤ýInput voltage range: 0-20 V

Audio Input

  • ¤ýInput voltage range: line-level, 2 Vpp
  • ¤ýMin. audio signal level (1 kHz): 40 mVpp
  • ¤ýBandwidth: 40 Hz – 20 kHz (-3 dB)

Output Triggers

  • ¤ýVoltage: 0-5 V
  • ¤ýMin. pulse width: 20 ms
  • ¤ýMin. Inter-trigger interval (rising edge): 40 ms
  • ¤ýLatency: <100 micro s (digital/analog/switch inputs); <0.5 ms (audio input); 12 ms wireless with <400 micro s jitter
  • ¤ýAutoTrigger: 1 Hz

Power

  • ¤ýMicro-USB 1.x/2.0 receptacle

Analog/Parallel Port

  • ¤ýInput voltage range: 0-20 V

AutoTrigger

  • ¤ýDistributes a 1 Hz square wave to all outputs
  • ¤ýEnables synchronization across multiple systems

Threshold

  • ¤ýNumber of settings: 10
  • ¤ýRange: 0.63-5.8 V
  • ¤ýAdjustable thresholding circuit on every input
  • ¤ýResulting triggers are consolidated and transmitted to DSI systems

Accessories

  • ¤ýPhotodetector
  • ¤ýPush-button trigger
  • ¤ýWired trigger cable
  • ¤ýWireless dongle
  • ¤ýWireless repeater
